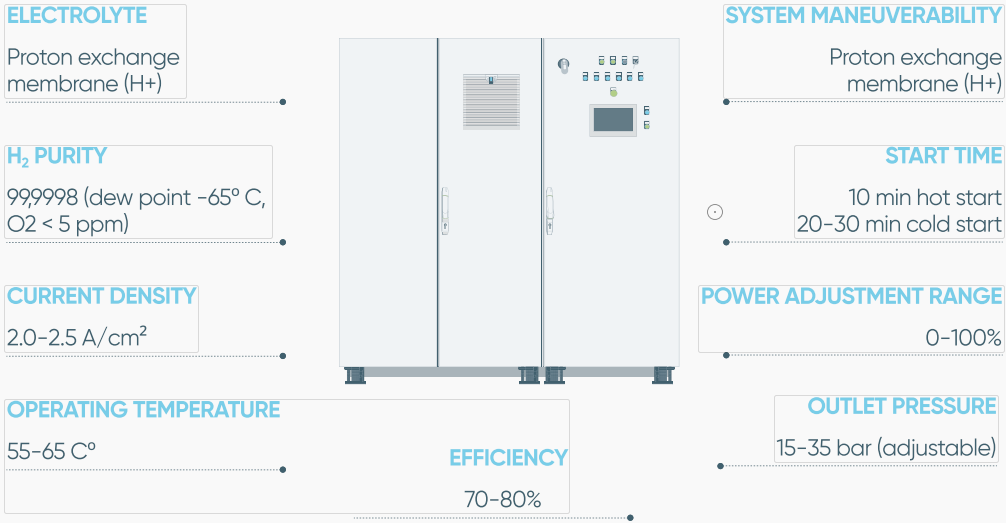

POLYCOM HYDROGEN UNIT. KEY FEATURES.

POLYCOM HYDROGEN UNIT. KEY FEATURES.

Advantages of PEM electrolysis technology

Environmentally friendly: no corrosion and non toxic electrolytic solution

High current density, small volumetric power density: 3 to 4 times smaller then alkaline

Better match with renewable energy: adapt to intermittent power supply

Fast dynamic response, wide operating range

Low operation and maintenance costs: electrolyzer overhaul is only in case of failed MEA; low daily operation costs

POLYCOM. PRODUCT RANGE.

PARAMETERS
Platform “A” 2-10 Nm³/h
New platform “В” up to 30 Nm³/h
H₂ OUTPUT
Scalable
- From 2 Nm³/h (1 cell stack for 2 Nm3/hY
- Up to 10 Nm³/h (3 cell stacks for 3,33 Nm³/h each)
Scalable
- From 3 Nm³/h (1 cell stack for 3,33 Nm³/h)
- Up to 30 Nm³/h (4 cell stacks for 7.5 Nm³/h each)
H₂ PRESSURE
Standard - 40 bar | Others on request
H₂ PURITY
99,9998% (dew point is equal to – 80° С)
SIZE
2300 х 800 х 2200 mm3000 х 800 х 2200 mm
WEIGHT
850 – 1250 kg depending on the configuration1400 – 1900 kg depending on the configuration
Very wide range of the modifications (2-10 Nm³/h)

Module array

POLYCOM HYDROGEN UNIT. KEY FEATURES.

Customized solution

POLYCOM HYDROGEN UNIT. KEY FEATURES.

1, 2 or 3 cell stacks onboard

  • Easy configure the system for 2, 4, 6, 10 of H2.
  • Easy to upgrade – just add the stack and the power module.
  • No need for onsite assembling.

POLYCOM. HYDROGEN UNIT. INDOOR.

POLYCOM HYDROGEN UNIT. KEY FEATURES.

UNIT CONFIGURATION:

Process cabinet, including water system, gas system, cell stacks.

Automation cabinet, including power units, control panel, fully automated control system, 3 level safety system, power distribution system;

Water treatment system.

MODULAR OPTION. THE CHASSIS - TWO CABINETS CONNECTED

Modular concept covers wide production range and can be easily scaled to your demands.

Re-equipment option on site is also available – just add electrolysis modules and power supply units.

POLYCOM HYDROGEN UNIT. KEY FEATURES.

POLYCOM. HYDROGEN UNIT. OUTDOOR

POLYCOM HYDROGEN UNIT. KEY FEATURES.

INSULATED MODULAR BUILDING CONTAINS:

ventilation system, heating system, fire alarm system, ACS, fire extinguishing system, automatic control and security system;
POLYCOM HYDROGEN UNIT. KEY FEATURES.

DESIGNED FOR AMBIENT TEMPERATURE FROM -35 TO +35 DEG. С.
